Product manual, click to download!

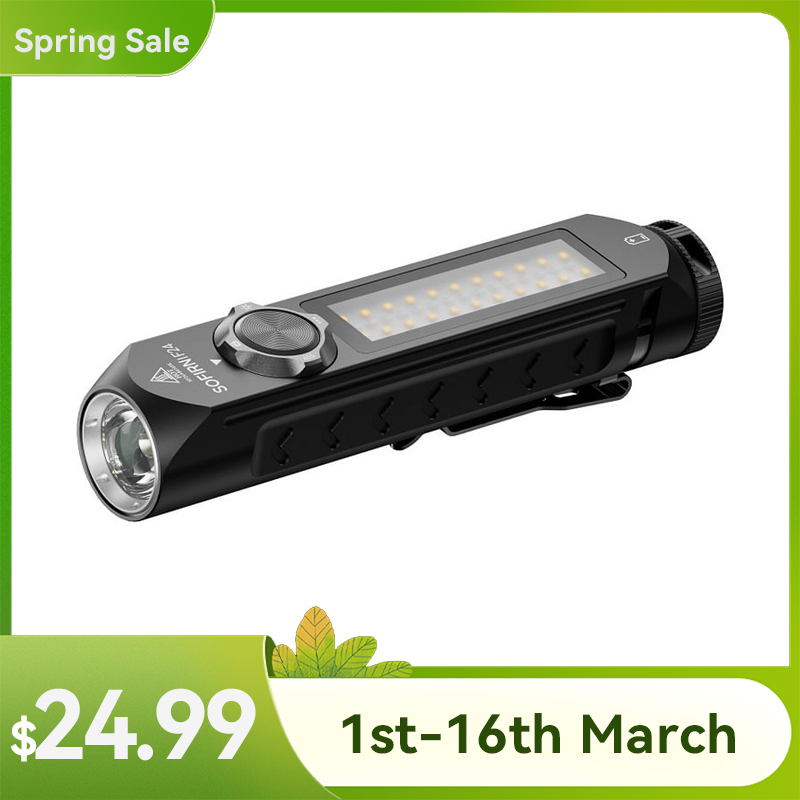

1.One Light, Endless Uses: IF24 features a 2000-lumen main beam, 550-lumen side white light, and RGB side light — perfect for work, camping, emergencies, or adding visibility in any situation.
2.Simple Operation: Combines a rotary switch with an electronic button for intuitive operation — easily adjust brightness or change modes, even in the dark or with gloves on.
3.Hands-Free Lighting: The magnetic tail cap sticks securely to any metal surface — ideal for working under the hood, setting up camp, or tackling jobs where you need both hands free.
4.Power Up Your Way: Equipped with a replaceable 18650 battery and convenient USB-C charging, you can recharge on the go or quickly swap batteries — stay powered anytime, anywhere without interruptions.
5.Built Tough for Real-Life: Made from aircraft-grade aluminum with IP66 water resistance, this flashlight stands up to rain, drops, and rough handling — ideal for outdoor adventures, repairs, or everyday carry.
Specifications:
Emitter: 1 * SST40 6000-6500K, 22 * CSP1313 5000K, 15 * FY-1615RGY RGB LED
Battery Option: 1 * 18650 battery
Working Voltage: 3V-4.2V
Mode Operation: Side e-switch and rotary switch
USB Type-C charging
Material: AL6061-T6 aluminium alloy
Size: 27.5 * 24.5 * 126mm
Reverse polarity protection from improper battery installation.
【General Operation】
LOCKOUT MODE:
Rotate the switch to the lockout mode.
Nothing happens when you click the button, but the indicator displays for 5 seconds to remind you of the battery level.
【MAIN LIGHT/SIDE LIGHT (same operation)】
ON/OFF: Single click the switch to turn it on/off. (It automatically turns on when you rotate the switch to the main/side light mode.)
OUTPUT SELECTION: When the flashlight is on, long press the switch to select output. It cycles through : Low→Medium→High.
DIRECT ACCESS TO MOONLIGHT MODE: When the flashlight is off, long press the switch to activate moonlight mode. Single click the switch to turn it off.
DIRECT ACCESS TO SPECIAL MODES (Turbo/Strobe/SOS/Beacon): Fast double-click the switch and it cycles through: Turbo→Strobe→SOS→Beacon. Single click the switch to return to the last used mode.
【COLOR MODE】
ON/OFF: Single click the switch to turn it on/off. (It automatically activates Red mode when you rotate the switch to the color mode.)
OUTPUT SELECTION: Fast double click the switch to select output. It cycles through: Police Flash→Rainbow→RGB Waterfall→Droplets→Neon Fade. Single click to return to the last mode setting.
