Product manual, click to download!
How to choose betweem IF24 and IF24PRO:
The IF24PRO is equipped with a buck driver, while the IF24 is not. The IF24 is brighter overall, but the IF24PRO offers a longer beam distance. In terms of color temperature, the IF24 is around 6000–6500K, while the IF24PRO is approximately 5000K.

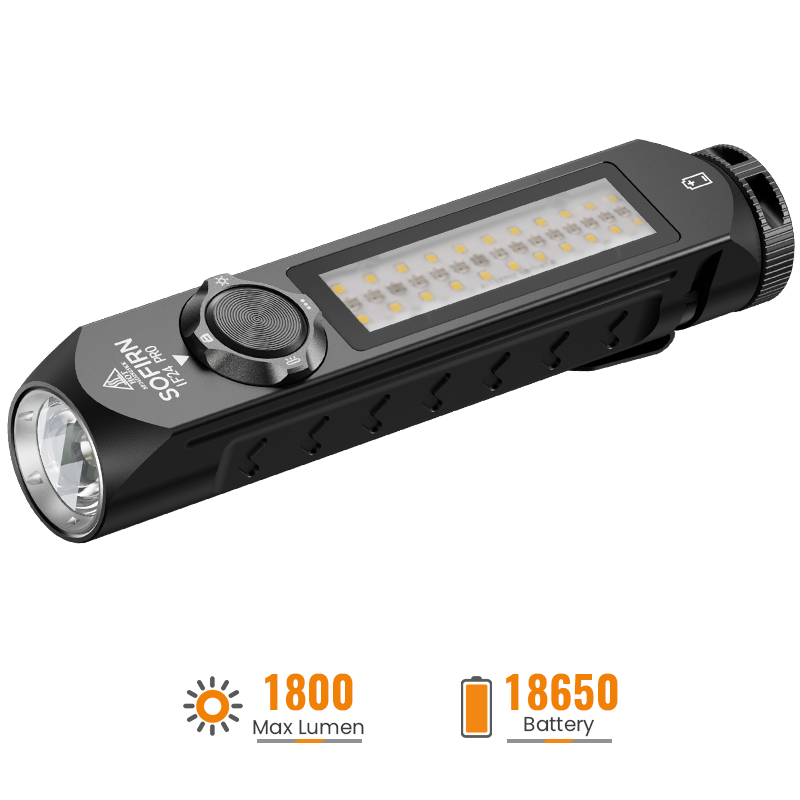

1. Multiple Lighting Sources: The IF24 PRO is a versatile EDC flashlight featuring a main white beam, a side white light, and side RGB LEDs. Whether you're camping, hiking, fishing, or exploring, its multiple light sources offer exceptional flexibility.
2. Easy Control with Rotary Switch: The IF24 PRO features a user-friendly dual-switch design: a side electronic switch for adjusting brightness levels, and a magnetic rotary switch that makes switching modes fast and intuitive. With a simple twist, you can effortlessly toggle between the main beam, side white light, RGB light, and lockout mod.
3. Efficient Buck Driver: The buck driver helps maintain steady brightness without frequent step-downs, even as the battery drains. It also reduces heat buildup, keeping your flashlight cool and reliable during long use.
4. Magnetic Tail Cap: The magnetic tail cap lets you go hands-free — easily attach it to toolboxes, car hoods, or any metal surface. Perfect for repairs, camping, or working in tight spaces.
5. Recharge or Replace — Your Choice: Powered by a replaceable 18650 battery and convenient USB-C charging — recharge anywhere or swap batteries on the go. No special charger needed, perfect for travel, work, or emergencies.
Specifications
1. Emitter: 1 * SFT40 5000K, 22 * CSP1313 5000K, 15 * FY-1615RGY RGB LED
2. Driver: IF24-FET; IF24 PRO-Buck (main light)
3. Battery Option: 1×18650 battery
4. Working Voltage: 3V-4.2V
5. Mode Operation: Side e-switch and rotary switch
6. USB Type-C charging
7. Material: AL6061-T6 aluminium alloy
8. Size: 27.5*24.5*126mm
9. Weight: 95g(without battery)
10. Reverse polarity protection from improper battery installation
11. It features a magnetic tailcap
General Operation
The IF24(Pro) has two switch designs, both switches operate independently. The rotary switch is used to switch between different modes, while the side e-switch is used to select different brightness levels.
MAIN LIGHT/SIDE LIGHT Operation
ON/OFF: Single click the switch to turn it on/off. (It automatically
turns on when you rotate the switch to the main/side light mode.)
OUTPUT SELECTION: When the flashlight is on, long press the switch to select output. It cycles through : Low→Medium→High.
DIRECT ACCESS TO MOONLIGHT MODE: When the flashlight is off, long press the switch to activate moonlight mode. Single click the switch to
turn it off.
DIRECT ACCESS TO SPECIAL MODES (Turbo/Strobe/SOS/Beacon): Fast double-click the switch and it cycles through: Turbo→Strobe→SOS→Beacon.
Single click the switch to return to the last used mode.
COLOR MODE
ON/OFF: Single click the switch to turn it on/off. (It automatically activates Red mode when you rotate the switch to the color mode.)
OUTPUT SELECTION: Fast double click the switch to select output. It cycles through: Police Flash→Rainbow→RGB Waterfall→Droplets→Neon Fade.
Single click to return to the last mode setting.
